1. Introduction

O-rings are essential components in a wide range of applications, providing a reliable seal to prevent leaks. To ensure a proper fit and optimal performance, accurate measurement is crucial. This guide will walk you through the steps to measure an O-ring correctly, helping you select the right size for your specific needs.

2. Tools You'll Need

• Digital or Vernier Caliper: The most accurate tool for measuring O-rings.
• Ruler or Tape Measure: Useful for rough measurements, but not recommended for precision.
• O-Ring Sizing Cone (Optional): A specialized tool for quickly identifying standard O-ring sizes.

3. Key Measurements

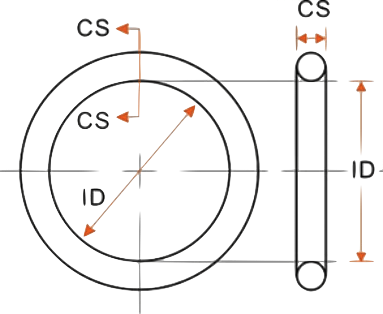

An O-ring is defined by three key measurements:

• Inside Diameter (ID): The diameter of the inner circle of the O-ring.
• Outside Diameter (OD): The diameter of the outer circle of the O-ring.
• Cross-Sectional Diameter (CS): The thickness of the O-ring's "tube."

4. Step-by-Step Measurement

Step 4.1: Cross-Sectional Diameter (CS)

• 1. Place the O-ring between the jaws of your caliper.
• 2. Gently close the jaws until they make contact with the O-ring.
• 3. Read the measurement on the caliper display. This is the **cross-sectional diameter (CS)**.

Step 4.2: Inside Diameter (ID)

• 1. Place the O-ring over the smaller jaws of your caliper.
• 2. Gently expand the jaws until they touch the inner surface of the O-ring.
• 3. Read the measurement. This is the **inside diameter (ID)**.

Step 4.3: Outside Diameter (OD)

• 1. Place the O-ring between the larger jaws of your caliper.
• 2. Gently close the jaws until they touch the outer surface of the O-ring.
• 3. Read the measurement. This is the **outside diameter (OD)**.

*The OD can also be calculated using the ID and CS with the following formula:*
OD = ID + (2 × CS)

5. Tips for Accurate Measurement

• Use a caliper: It provides the most accurate measurements.
• Measure multiple times: Take a few measurements and use the average to ensure accuracy.
• Be gentle: Avoid deforming the O-ring when measuring, as this will result in an inaccurate reading.
• Check the condition: If the O-ring is old, worn, or stretched, your measurements may be inaccurate. It is best to measure a new O-ring if possible.
