Get to Know FLOWSEAL Joint Sealant: The Soft PTFE Gasket A New Sealing Alternative for Maximum Cost Savings and Ease of Installation

15 Views |

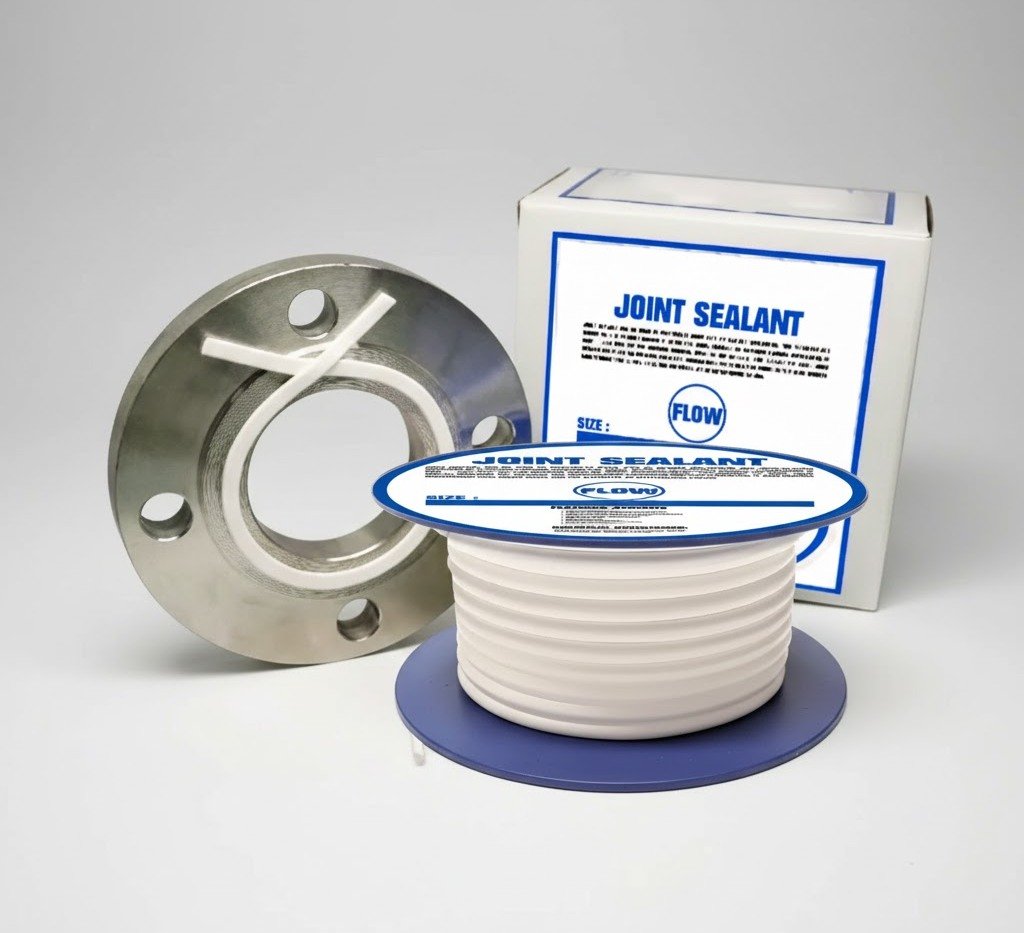

FLOWSEAL Joint Sealant

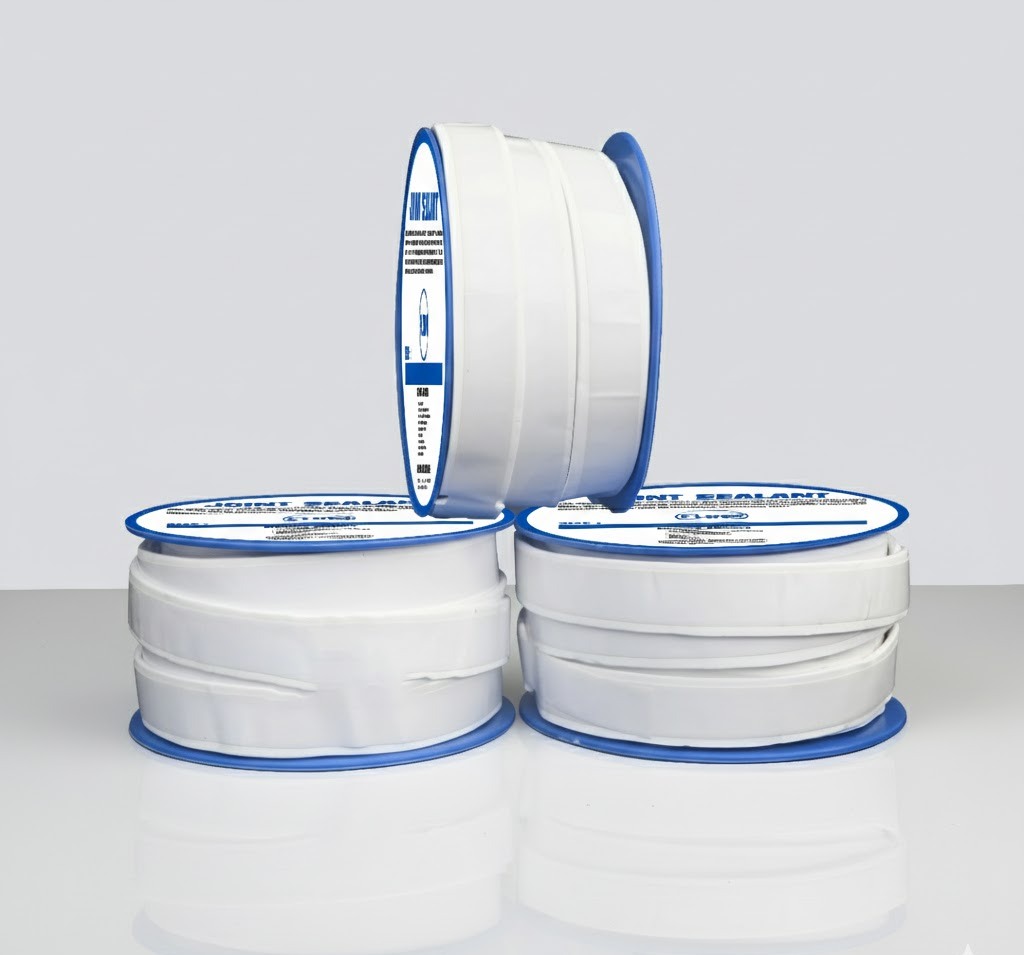

100% Expanded PTFE Tape | The Universal Gasket Solution

Key Features

Seals Irregular Surfaces: Soft, flexible material conforms to worn or uneven flanges perfectly.
Easy Installation: Adhesive backing strip allows for "Peel & Stick" application. No cutting templates needed.
High Durability: Excellent chemical resistance (pH 0-14) and temperature range up to 260°C.
Cost Effective: One spool fits all flange sizes. No scrap, no waste.
Food Grade: FDA Approved (21 CFR 177.1550). Safe, non-toxic, and odorless.

Technical Data

Property	Description
Material	100% Virgin Expanded PTFE
Temperature Range	-268°C to +260°C
Pressure Range	Vacuum up to 40 Bar
Chemical Resistance	pH 0-14 (Resistant to almost all media)

️ Installation Tip

For maximum sealing performance: When completing the loop, DO NOT butt-joint the ends. Instead, use the "Cross Over" technique by overlapping the tape ends at a bolt hole position (approx. 1-2 cm). This ensures the bolt load compresses the joint tightly.
