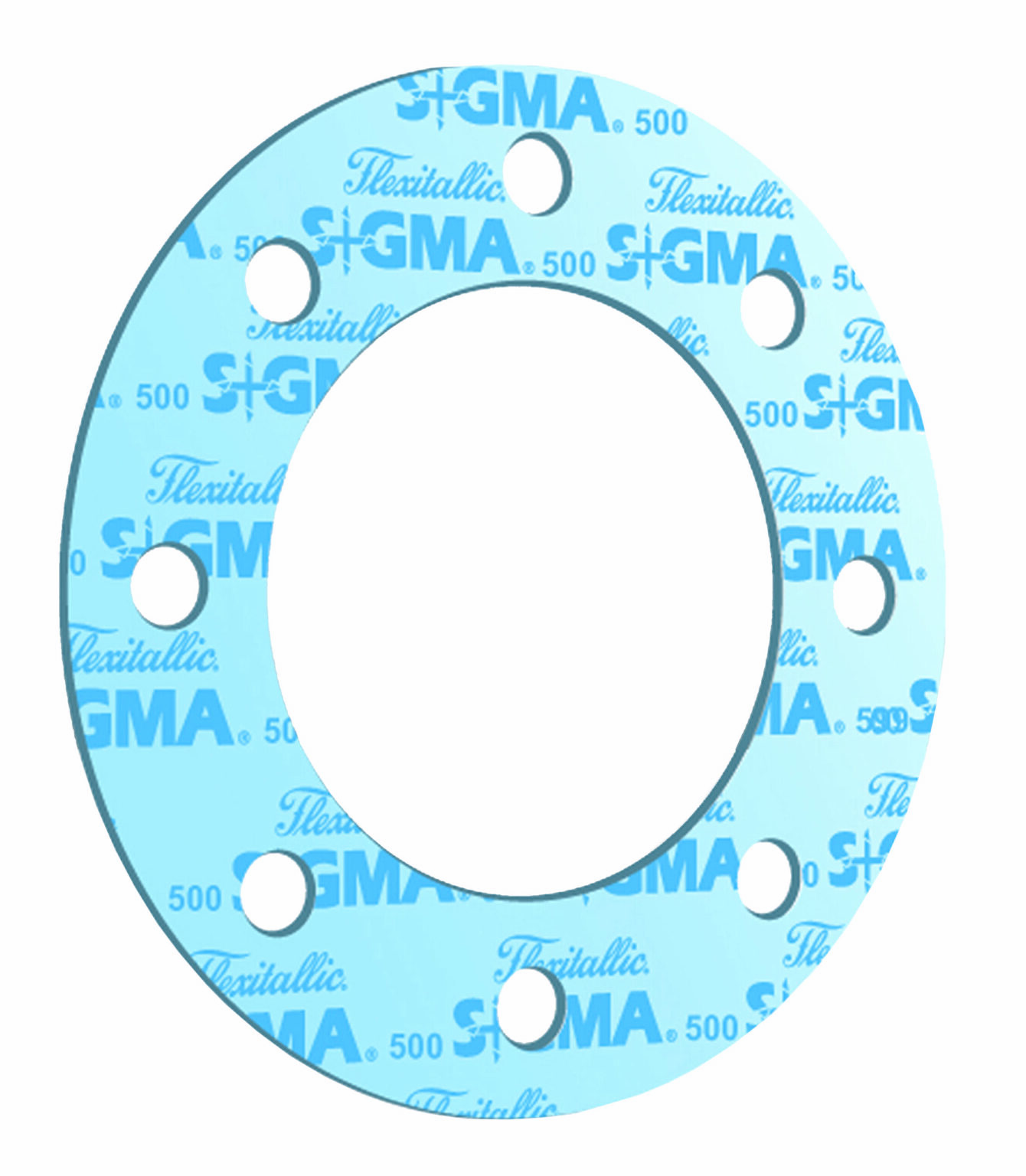

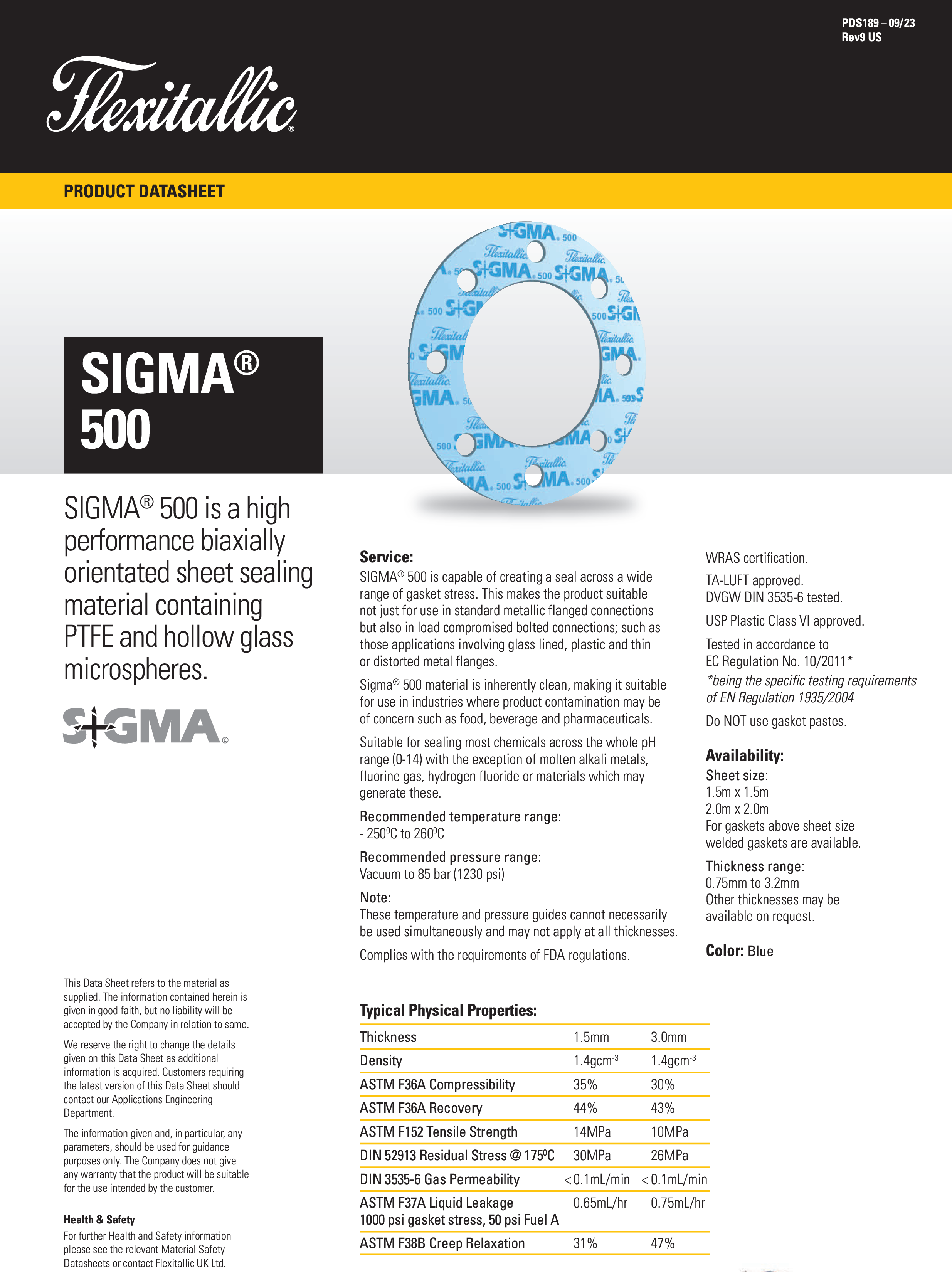

Sigma 500 is biaxially orientated PTFE containing hollow glass microspheres. Colour: Blue Enhanced compressibility for low bolt loads Improved flexibility over conventional calendered and graphite sheets Moderate concentrations of acids & caustics, chlorine and hydrogen peroxide Can be used for all concentrations of sulfuric acid
| Approval | DVGW, EC1935, FDA, FDA Compliant, TA Luft, USP Plastic, WRAS |
| Brand | Sigma |
| Flange Face | Flat, Raised |
| Maximum Temperature | 260°C / 500°F |
| Media | Hazardous |
| Minimum Temperature | -200°C / -328°F |
| Pressure | 51 Bars / 739.69 PSI |
| Pressure Class | 150 & 300 |
| Pressure Rating | PN40 |
